Small mini lab wool and cotton sample carding machine for spinning line

FOB Reference Price:Get Latest Price
$7,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
AT202
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
1000w
Dimension(L*W*H):
180*110*110
Weight:
650
Warranty:
12 Months
Condition:
New
Application:
carding machine
Automatic Grade:
Automatic
Production Capacity:
high speed
Place of Origin:
Anhui, China
Brand Name:
Anytester
Voltage:
220V 50Hz or customized
Features:
New
Certification:
ISO9001
Feeding width:
400mm
Working width:
360mm
Cylinder diameter:
450mm
Doffer diameter:
220mm
Licker-in diameter:
165mm
Working roll diameter:
110mm
Speed:
Adjustable (Frequency converter control)
Max. fiber length:
about 100mm
Villus bucket power:
1.5KW
Output capacity:
5~10kg/h
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Export Wooden Case
Port
China Seaport
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

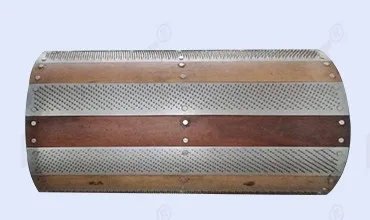

HY1002 Laboratory Carding Machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differential moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.

Specifications
Feeding width
400mm
Working width
360mm
Cylinder diameter
Φ450mm
Doffer diameter
Φ220mm
Licker-in diameter
Φ165mm
Working roll diameter
Φ110mm
Wipe roll diameter
Φ90mm
Speed
Adjustable (Frequency converter control)
Max. fiber length
about 100mm
Villus bucket power
1.5KW
Output capacity
5~10kg/h
Maine machine power
AC220V/380V, 50/60Hz, 2.2KW
Dimension
1350mm*950mm*900mm (main machine)
Weight
650Kg
Detailed Images

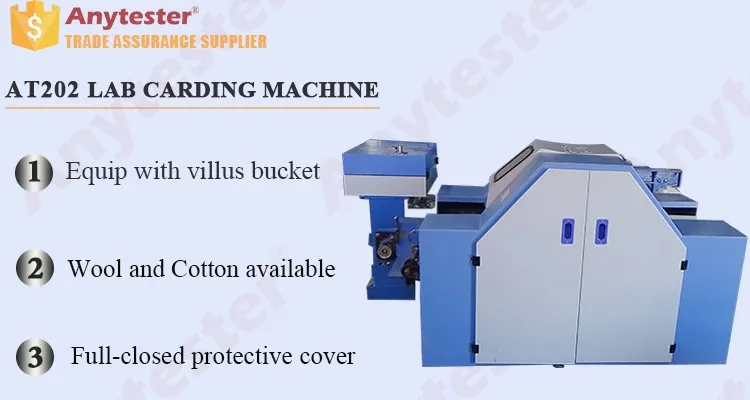

★ Mini type machine, save researching cost and easy to operate and maintain

★ With full-closed protective cover.





★ Imported frequency converter control, high efficiency.

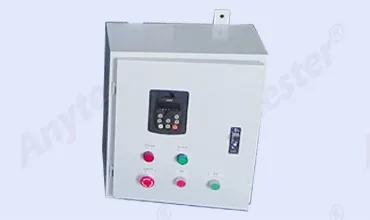

★ It is driven by a 2.2 kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.


★ Can be used for wool fiber or chemical fibers.

★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web

★ It can produce web or sliver according to customer's selection.


Packing & Delivery
Packaging
Size(cm)
180(L) * 110 (W) * 110 (D)
Weight
650 Kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
