Mini Bench-Top Wet Spinning Machine with Stainless steel frame For Research New Material In The Field Of Textile Macromolecule

FOB Reference Price:Get Latest Price
$28,000.00 - $35,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
AT235
No.of spindles:
1
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Power(W):
250W
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Applicable Industries:
Manufacturing Plant
Condition:
New
Application:
Spinning Machine
Type:
Spinning Production Line
Production Capacity:
200
Place of Origin:
Anhui, China
Brand Name:
Anytester
Spinning Method:
Ring Spinning
Automatic:
Yes
Certification:
ISO
Setting bath Heating power:
250W
Setting bath Temp. range:
20~150℃
Heating bath Type:
non-contact
Heating bath Length:
400mm
Drawing roller Material:
Nylon or 316L stainless steel
Drawing roller Reducer:
1:10
Coagulating bath Size:
1000*160*160mm
Coagulating bath Material:
316L stainless steel
Dosing pump power:
180W
Supply Ability
Supply Ability:
200 Unit/Units per Year
Packaging & Delivery
Packaging Details
Export Standard Wooden Case
Port
Any China Seaport
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

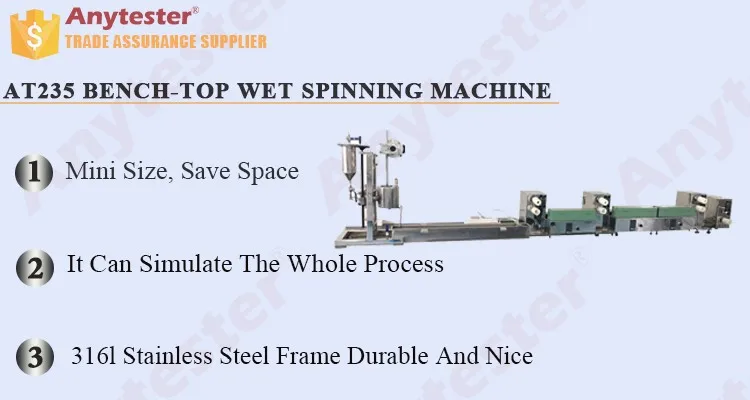

AT235 Bench-top Wet Spinning Machine is special design for researching new material in the field of textile, macromolecule and other material. It consists of mixing tank, dosing pump, filter, spinneret, coagulating bath, drawing roller, heating bath, drawing roller, setting bath, drawing roller and winding.

Specification
Model
AT235
Mixing tank
1L or customized, 316L stainless steel
Sample volume
200~ 600ml or customized
Vacuum pump
0.18kW
Dosing pump flow rate
0.66CC/rev
Dosing pump power
180W
Dosing pump reducer
1:60
Spinneret
1
Spinneret plate
100 holes, hole dia.: 0.07mm
Material: tantalum


Coagulating bath
Size
1000*160*160mm
Heating power
0.6kW
Material
316L stainless steel





Drawing roller
Material
Nylon or 316L stainless steel
Size
Ø50×80mm
Reducer
1:10
---
One horizontal roller, one gradient roller with ±5 degree, it's adjustable
Motor power
25w
Roller speed
2~40m/min adjustable



Heating bath
Type
non-contact
Length
400mm
Heating power
250W
Temp. range
20~150℃
Sensor
PT100



Setting bath
Type
non-contact
Length
800mm
Heating power
250W
Temp. range
20~150℃
Sensor
PT100

Winder
Speed
2-40m/min
Size
Ø50×80mm
Transverse displacement
55mm
The Whole line length
5000mm
Power supply
220V, 50Hz
Futures

★ 316l Stainless steel frame, durable and nice

★ Mini size, save space

★ It can simulate the whole process

★ Thermal system for mixing tank is selectable

★ Heating bath can adopt air heating or water heating, it's selectable.

★ The whole line adopt quick joint connecting, it's easy to assemble.
